MHABM-HDX
- ADJUSTABLE & FULLY REVERSIBLE - 24 ADJUSTMENT POSITIONS.
- BOTH PARTS OF THE HITCH ARE REVERSIBLE

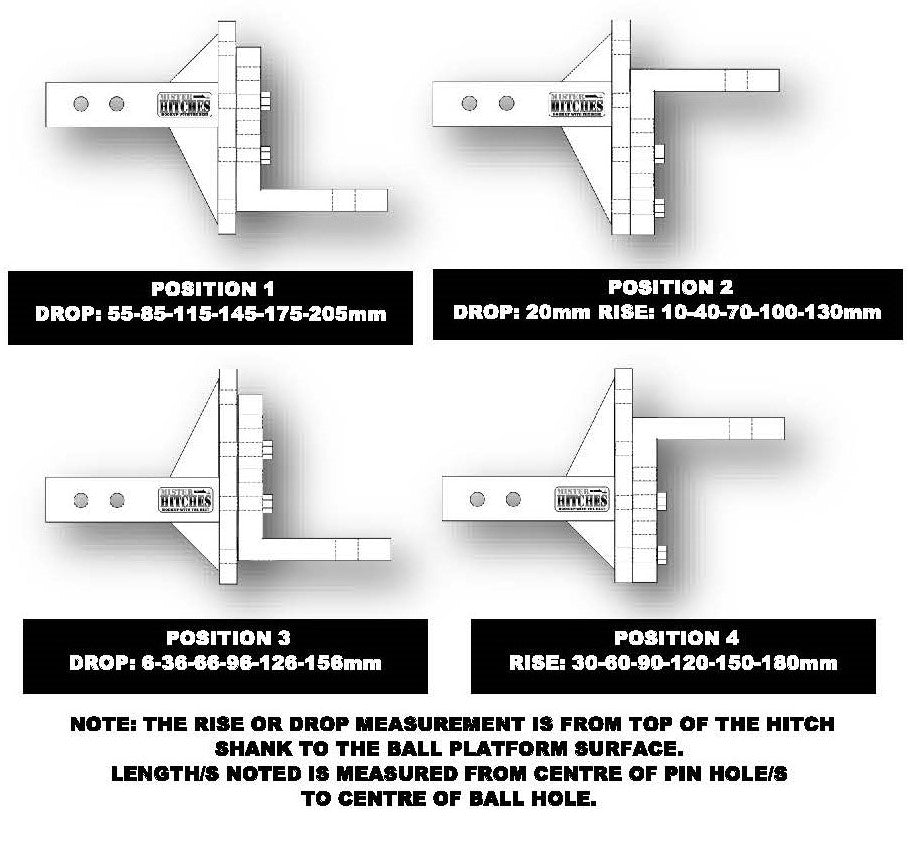

- POSITION 1. DROP: 55/85/115/145/175/205mm
- POSITION 2. DROP: 20mm RISE: 10/40/70/100/130mm
- POSITION 3. DROP: 6/36/66/96/126/156mm
- POSITION 4. RISE: 30/60/90/120/150/180mm
- 9mm DUAL SUPPORT GUSSETS FOR ADDED STRENGTH

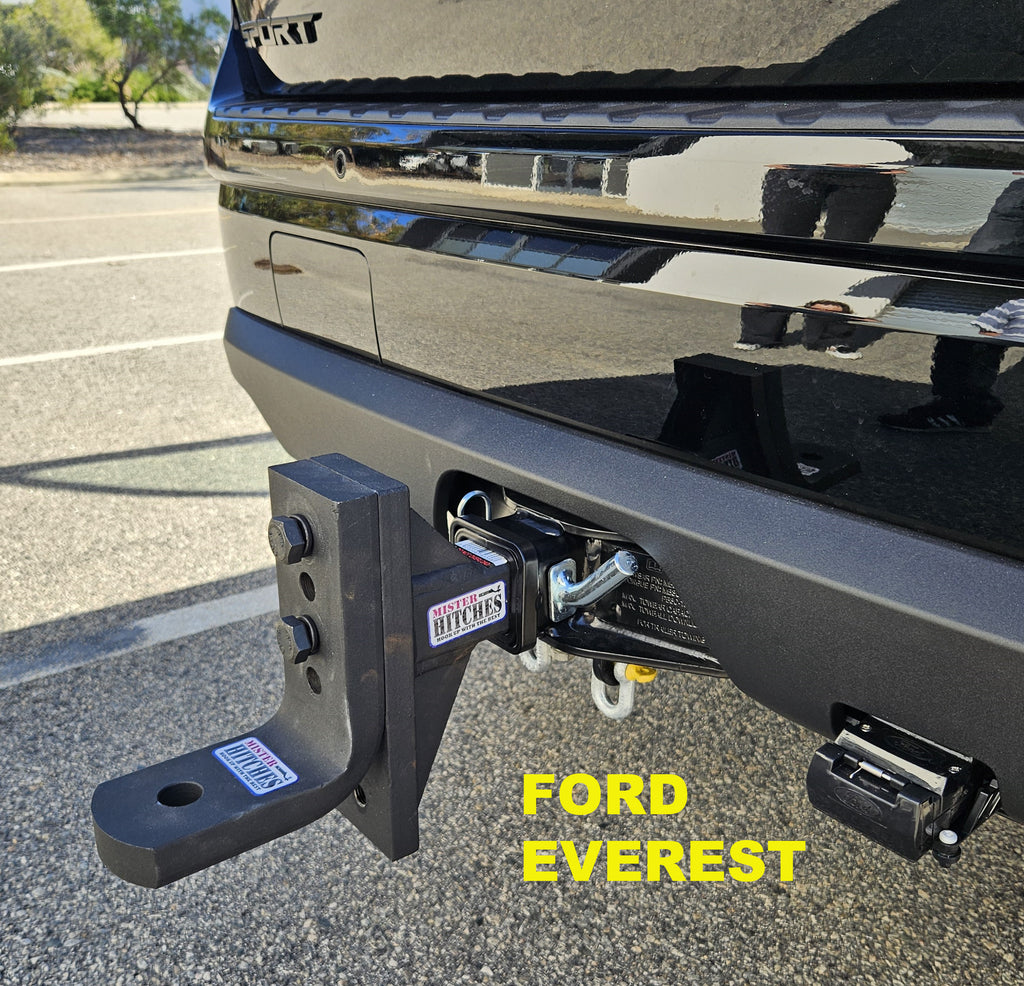

- SUITS MM PAJERO SPORT & FORD RANGER SHALLOW RECEIVER COMPATIBLE PIN HOLES ) (40 & 80mm from end of shank)
- LENGTHS: 245/285mm (centre of pin hole to centre of ball hole)
- USES 12.9 GRADE HIGH TENSILE 16MM BOLTS (TORQUE to 189Nm)
- 25MM X 75MM HEAVY DUTY BALL PLATFORM.
- MATTE BLACK SEAGUARD FINISH
- 5.75mm THICK STEEL SHANK
- ROBOTIC WELDED FOR CONSISTENT QUALITY
- CNC MACHINED FOR MAXIMUM ACCURACY
- FITS 2" X 2" TOWBAR RECEIVERS
- ADR62 COMPLIANT

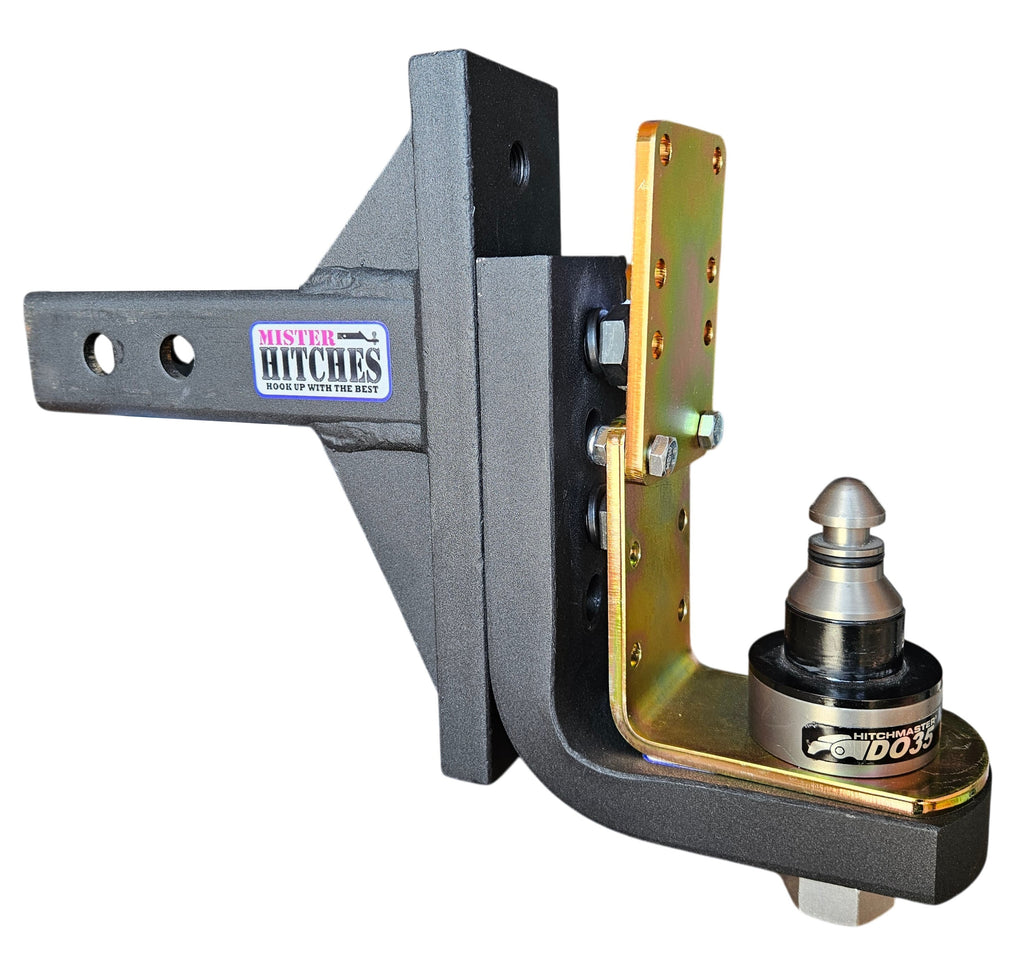

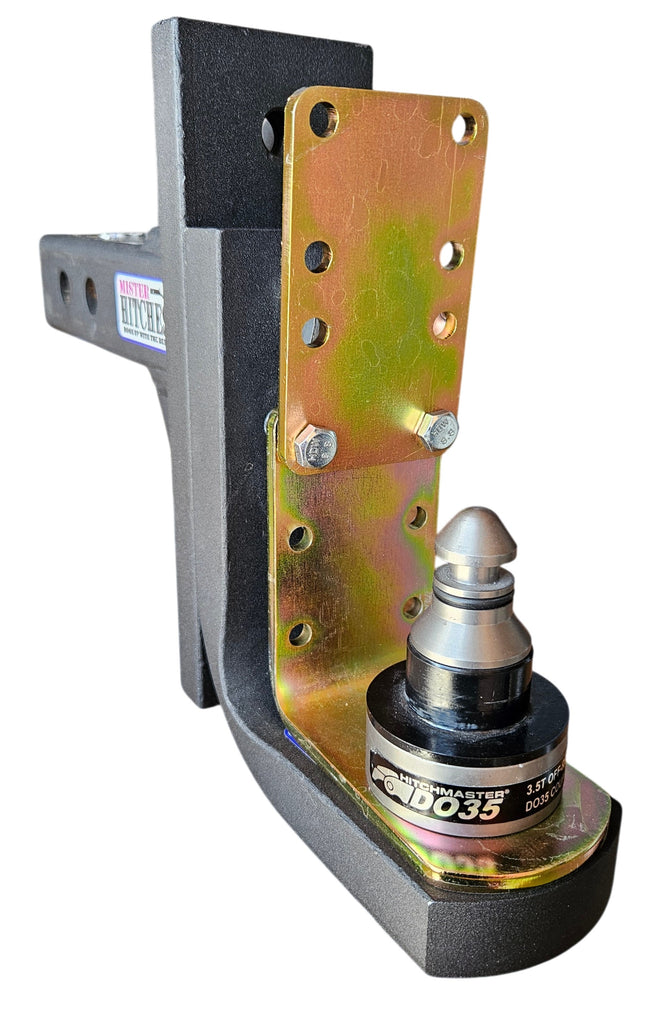

- SUITABLE FOR D035 PIN & STONE STOMER UNDER BALL BRACKET.
- ORIGINAL DESIGN BY MISTER HITCHES AUSTRALIA
GROSS TRAILER WEIGHT: 4000KG
TONGUE WEIGHT: 400KG
BALL HOLE SIZE: 7/8"
MAX DROP: 205MM
MAX RISE: 180MM

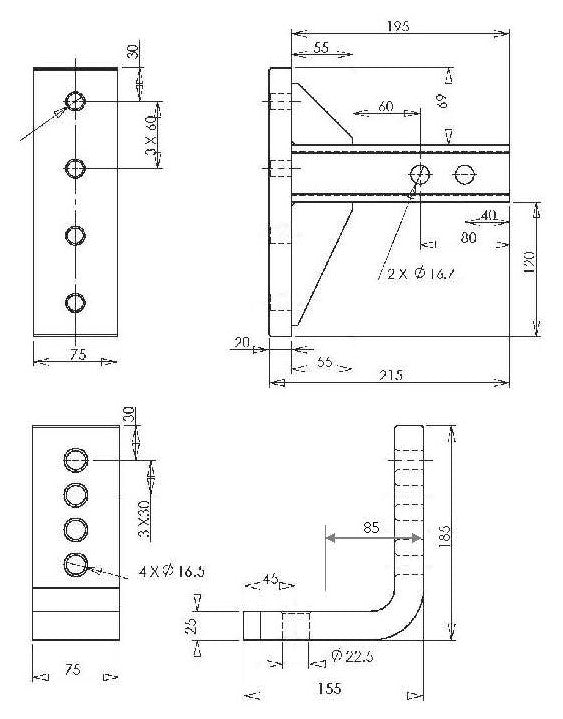

LENGTHS: (MEASURED FROM CENTRE OF PIN HOLE TO CENTRE OF BALL HOLE) 245/285MM
PIN HOLE TO END OF SHANK 40MM & 80MM
PIN HOLE TO GUSSET 60MM
SUITS STONE STOMPER UNDER BALL BRACKET & MOST COUPLINGS EG. D035
MEASUREMENTS ARE APPROX.
